Flat Pack Vs. Detachable Container Houses: Which Modular Solution Is Right for Your Project?

At Nanjing Changyou Intelligent Modular Housing Technology Co., Ltd. , with over 25 years of experience as a direct manufacturer, we understand that choosing the right modular building solution is critical for the success of your project. Two of our most popular products, the  Flat Pack Container House  and the Detachable Container House (Quick-Assembly Container), often come up for comparison. While they may look similar at first glance, they possess distinct characteristics that make them suited for different applications.

This article breaks down the key differences to help you make an informed decision.

1. Structural Prefabrication & Assembly: The Core Difference

This is the most fundamental difference between the two systems.

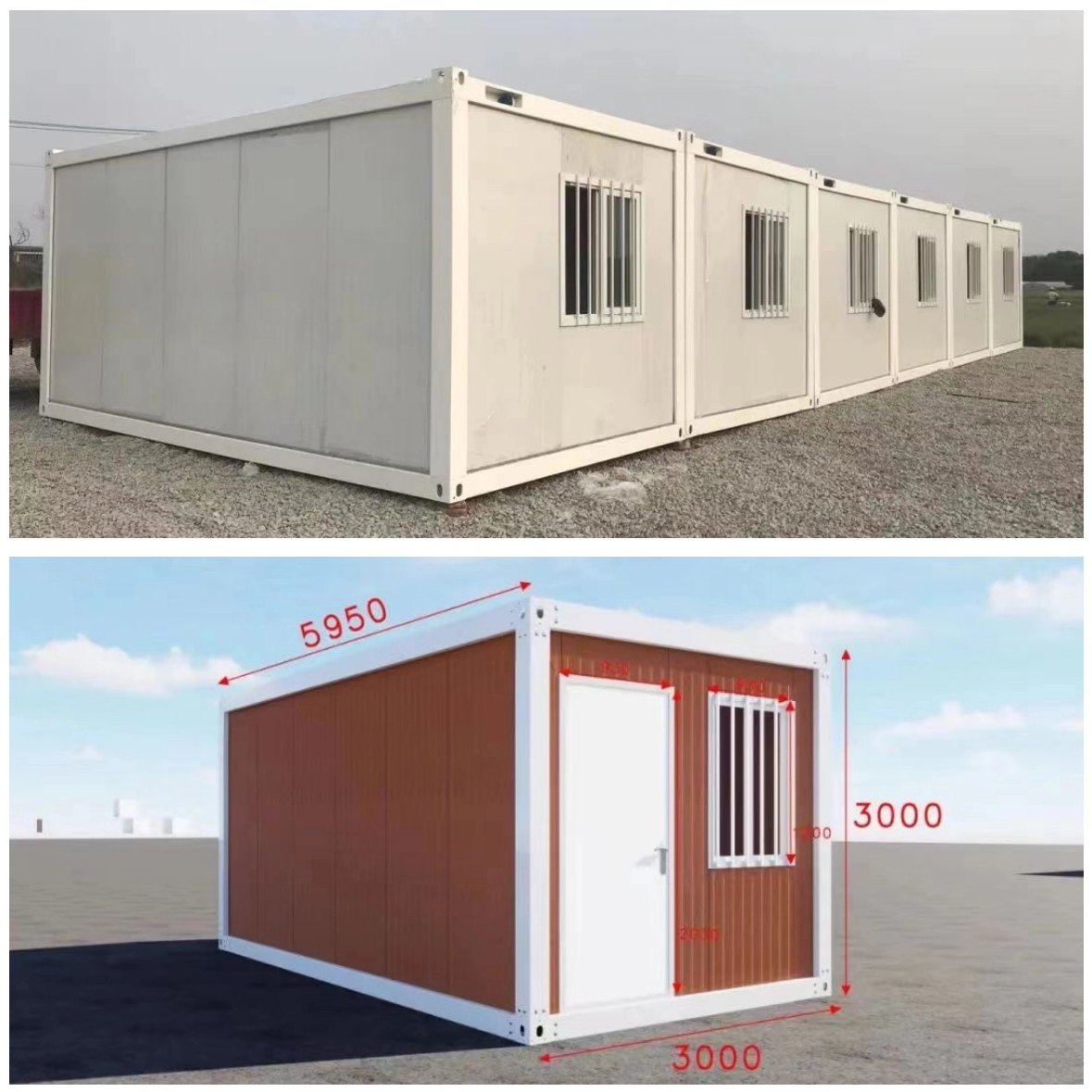

Flat Pack Container House: The core framework, including the top and bottom frames, is fully welded together at the factory. This results in a more integrated, robust, and stable unit. The connections use internal hex screws, making the exterior neat and seamless when units are placed side-by-side.

Detachable Container House: Designed for maximum transport efficiency, it features a completely knocked-down (CKD) framework held together by carriage bolts on-site. This is visible from the outside, leaving a small gap (~1 cm) between components.

In simple terms: Think of a flat pack as a pre-assembled, solid module, while a detachable container is a sophisticated kit of parts.

2. Key Functional Differences Explained

Beyond the core structural differences, flat pack and detachable container houses exhibit significant variations in key functional areas, which directly impact their user experience, suitable applications, and final performance.

Electrical System: Concealed vs. Exposed
Flat pack containers utilize an integrated circuit design. They employ safer three-core cables, with all wiring and sockets concealed within the walls. Connections between units are made via professional aviation plugs. This approach not only creates a cleaner, more aesthetically pleasing interior but also significantly enhances safety and reliability, meeting standards for permanent or semi-permanent structures. Detachable containers typically use external wire conduits (trunking), two-core cables, and have exposed wire ends for connection. This design simplifies installation and maintenance but is less sleek and offers lower inherent safety compared to the integrated system.

Drainage System: Internal vs. External
Flat pack containers feature a built-in downpipe system. The top frame is designed with gutters that channel water through downpipes hidden within the four corner fittings (lift points), directing it efficiently to the ground. This system offers high drainage efficiency and minimal leakage risk, proving particularly advantageous when creating interconnected units or corridors. Detachable containers primarily rely on drainage holes on the top beams for water runoff. During heavy rain, this method can be prone to overflow and potential water seepage. Furthermore, the visible gaps between panels in these units can increase the risk of water penetration.While detachable container houses can be prone to water seepage, clients can opt to install an additional pitched roof over the top of the units. This solution effectively diverts rainwater away from the structure itself, perfectly mitigating the potential drainage and leakage issues.

Flooring Material: Load-Bearing vs. Lightweight
Flat pack containers use 18mm thick cement fiberboard as the subfloor material. Its advantages include excellent waterproofing and superior load-bearing capacity, providing a feel closer to traditional construction. Crucially, this flooring is installed at the factory, requiring no additional onsite work. Detachable containers use 18mm thick magnesium oxide board (MgO board). Its main advantage is its lighter weight (approximately 2/3 that of cement board), which greatly facilitates manual assembly on-site (cement board is heavy, prone to damage, and difficult to handle during onsite assembly). However, MgO board generally offers lower waterproofing and load-bearing performance compared to cement board, making proper site leveling and ground drainage even more critical.

In summary, the flat pack container prioritizes higher integration, superior performance, and permanence in these core functionalities. In contrast, the detachable container's design emphasizes ease of onsite assembly and transportation economy, making compromises in certain functional aspects.

3. Transportation & Installation

Transportation: This is where the Detachable Container House shines.

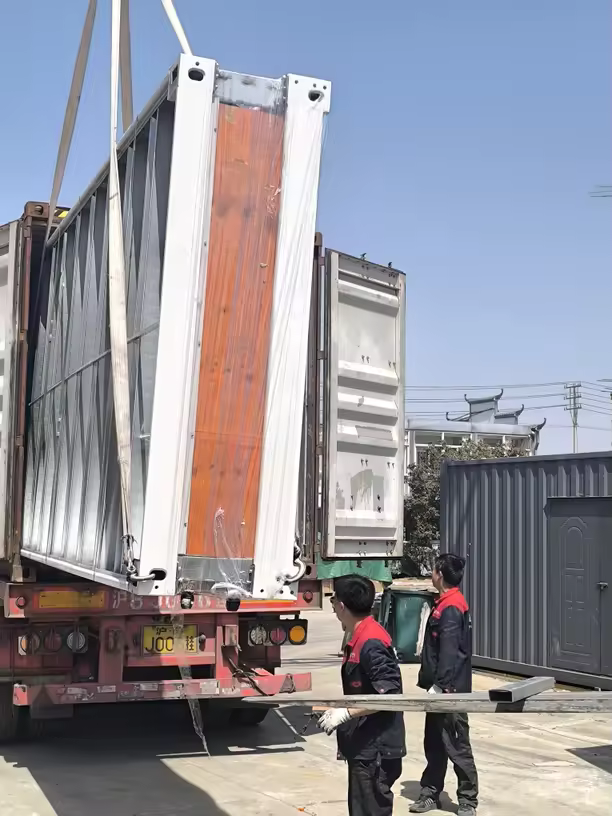

Flat Pack: A 40ft container can hold 6 standard units. Requires a 17.5m flatbed truck for domestic transport.

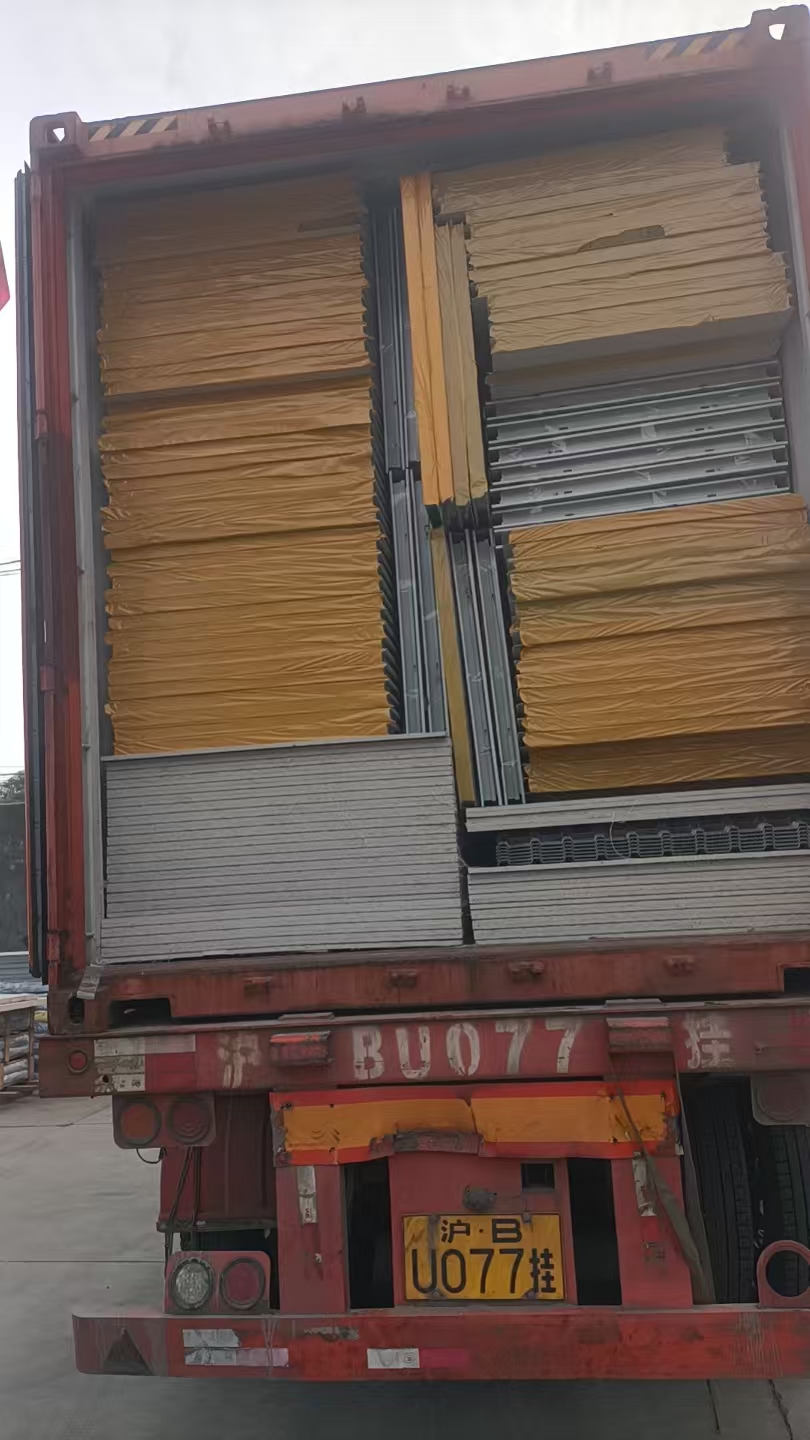

Detachable: A 40ft container can hold up to 16 standard units. Can be transported via standard 9.6m or 13.5m high-barrier trucks. This significantly reduces international shipping and long-haul domestic costs.

Installation:

Flat Pack: Requires a crane for placement. Once positioned, the connection of units and utilities is very quick. A team can install a unit in about 4 hours with crane assistance.

Detachable: Can be assembled  entirely by hand without a crane. However, the assembly process is more labor-intensive, taking about  5 hours per unit. While the labor cost might be higher, you save on crane costs.

4. Price & Value Proposition

Unit Price: The detachable container generally has a  lower initial unit price due to its simpler design and packaging.

Total Delivered & Installed Cost: When you factor in the dramatically lower  shipping cost per unit  for the detachable model and the potential avoidance of crane fees, the total project cost can be highly competitive. For large-volume orders destined for remote sites or export, the detachable container can offer tremendous value.

5. Market Application & Which One to Choose

Choose Flat Pack Container House if:

 Your priority is premium quality, durability, and a seamless aesthetic.

The project is within a region with easy crane access.

You need superior  weather resistance (rain, wind) and a long service life.

 It is for  domestic projects where transportation cost differences are less impactful.

Choose Detachable Container House if:

Transportation efficiency and cost are your primary drivers, especially for export orders or remote sites.

The project site has limited access for large trucks or cranes.

You need to achieve wider interior spaces (over 3m), as the disassembled parts can be configured more flexibly to fit shipping containers.

You are working with a procurement team that values the initial low unit price and standardized, cost-effective solutions.

Conclusion: Two Excellent Solutions for Different Needs

There is no single "best" option—only the best option for your specific project's requirements, budget, and location.

At Nanjing Changyou, we don't just manufacture both types; we provide expert guidance. With our 25 years of industry experience, we can help you analyze your project needs and recommend the optimal solution—be it a robust flat pack or a transport-efficient detachable container. Our in-house manufacturing control ensures high quality in either product, and our professional installation teams are equipped to handle both installation methods seamlessly.
