You finally purchased your modular unit, and delivery day is fast approaching. Your primary concern now shifts to ensuring a safe, compliant, and structurally sound deployment on your property. Many buyers mistakenly treat this installation as a simple "plug-and-play" magic trick. In reality, deploying these structures is a highly systematic logistical process. You must carefully manage site preparation, secure specialized machinery, and enforce strict safety protocols.
This guide serves as your comprehensive, engineering-aligned roadmap. We will walk you through everything from foundation preparation to the final utility connections. You will learn how to minimize hidden logistical delays, prevent accidental structural damage, and accelerate your move-in timeline. By following these precise steps, you guarantee that your expandable container house rests on a solid, reliable footing.
Foundation is non-negotiable: A perfectly level foundation (concrete piers or slab) is required to ensure hinges and folding mechanisms operate without binding.
Heavy equipment is mandatory: Unloading and positioning typically require a crane (suggested 10–15 ton capacity) or a heavy-duty forklift, depending on site access.
Standardized crew size: A minimum of 3 to 4 physically capable individuals is recommended to safely unfold and secure the structural panels.
Weatherproofing priority: Proper sealing of the folding seams with industrial-grade silicone immediately after assembly is critical to prevent moisture ingress.
Timeline expectations: While the physical unfolding takes roughly 1 to 2 hours, site prep, leveling, and utility connections dictate the true project timeline.
Successful installations happen before the delivery truck even arrives. You must define all prerequisites early. Doing so helps you avoid hefty demurrage charges from freight companies. It also prevents your team from standing around waiting for unfulfilled requirements.
You cannot place a folding structure on uneven ground. Doing so introduces massive operational risks. Uneven ground causes doors to jam. It misaligns heavy roof panels. It also stresses the main folding hinges beyond their design capacity. You must establish a perfectly level base.
Foundation Comparison Matrix
Type | Best Use Case | Setup Complexity | Key Advantage |
|---|---|---|---|
Concrete Slab | Permanent setups, heavy loads | High (requires pouring and curing) | Maximum stability and weight distribution |
Concrete Footings/Piers | Semi-permanent, cost-effective setups | Medium (requires precise laser leveling) | Excellent under-floor ventilation |

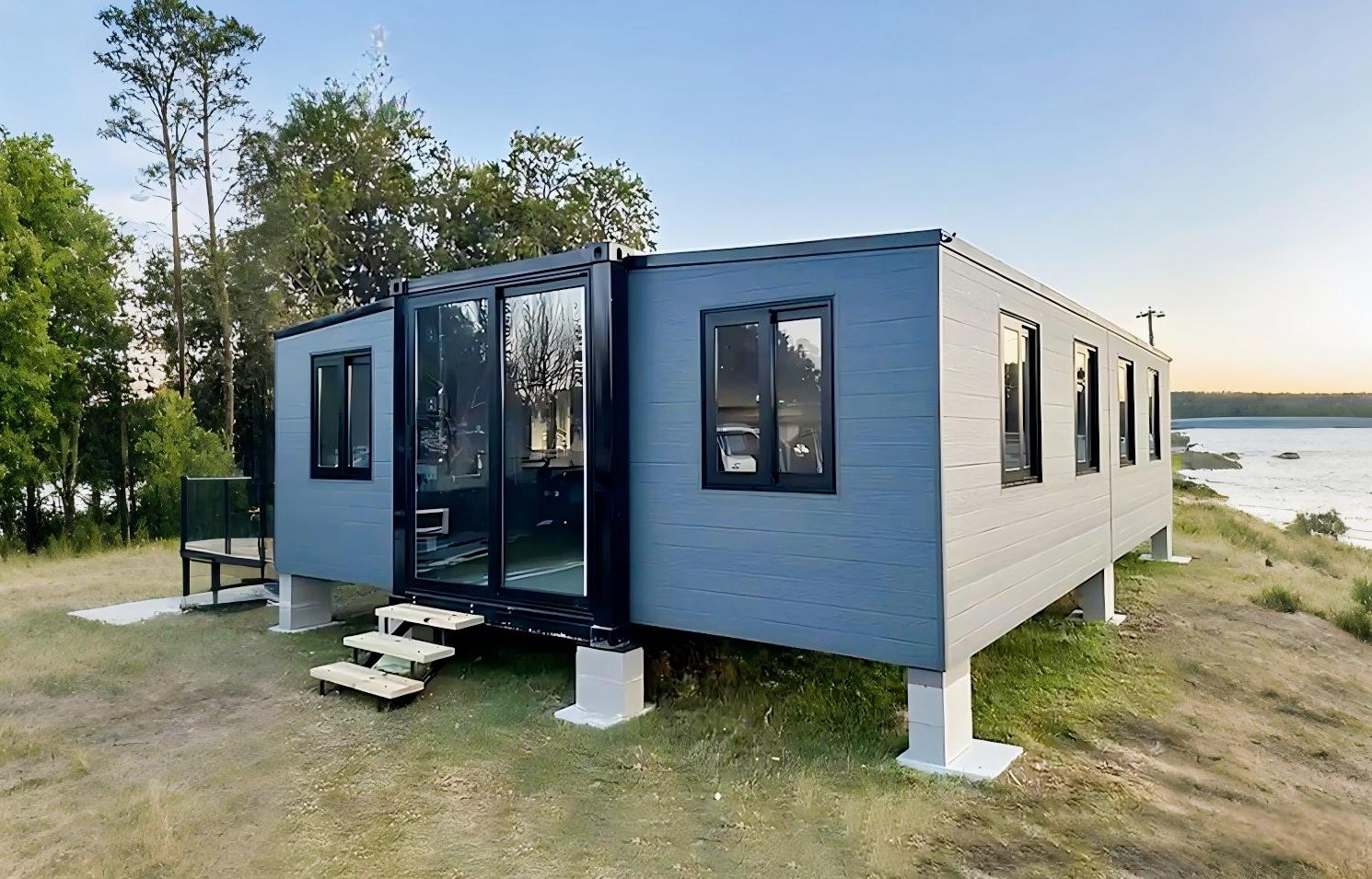

We highly recommend maintaining a standard ground clearance of 300mm to 400mm. This gap provides crucial under-floor ventilation. It also gives your plumbers enough room to run necessary drainpipes and inlet valves easily.
Do not attempt this build with standard household tools. You need professional-grade equipment. Prepare the following items well in advance:
Heavy-duty impact drivers for securing structural bolts.
A high-quality laser level and a long spirit level.
Heavy steel crowbars for micro-adjustments.
Sturdy step ladders and extension ladders.
Multiple tubes of industrial-grade exterior silicone sealant.
Expanding polyurethane foam for deep gaps.
You must also secure proper lifting machinery. A standard folding modular unit carries a transport weight between 2.5 and 3.5 tons. Book a crane with a 10 to 15-ton lifting capacity. This ensures the crane can easily reach and maneuver the unit safely from the truck to your foundation.
The handover moment from freight transport to your build site carries high risk. Safety and compliance must remain your primary focus. Rushed unloading frequently leads to catastrophic exterior damage.
You must use certified four-point lifting cables. Attach these heavy-duty cables directly to the designated top corner castings. These castings are engineered specifically for load-bearing lifts.
Never use improper strap placements. Wrapping standard lifting belts under the belly of the unit is a critical mistake. The upward pressure of improper straps will crush the delicate roof panels. It can also permanently damage the expanding side cassettes, making them impossible to unfold.
Lower the unit slowly onto your prepared footings. Guide the module by hand using tag lines attached to the corners. Do not let the module swing wildly in the wind. Once the structure rests on the foundation, detach the lifting cables carefully.
Before you attempt to unfold anything, verify your leveling. Place your laser level squarely on the primary central chassis. Check the pitch horizontally and vertically. If the central chassis is not perfectly level, use steel shims under the corner castings to adjust it. Never unfold the sides if the center block remains unlevel.
We now reach the core operational sequence. You must execute this step-by-step process safely and methodically. Do not rush the physical expansion. Rely on your 3 to 4 crew members to support the moving parts.
Follow this exact chronological sequence to prevent binding or structural failure:
Step 1: Unlocking the main chassis. Locate and remove all exterior transport bolts. Cut the heavy shipping seals. Remove the transit brackets holding the folded panels flush against the main frame.
Step 2: Deploying the roof. Carefully push the folding roof sections upward. Use the factory-provided steel support poles to hoist the roof. Lock the temporary support poles securely into place so the roof remains elevated and safe.
Step 3: Dropping the floor. You must lower the hinged floor panels slowly. These panels carry significant physical weight. Use the integrated internal hand winch if your model includes one. Otherwise, deploy controlled manual crew support. Have two people ease the floor down until it rests perfectly flat on the foundation footings.
Step 4: Erecting the walls. Swing out the front and back end-walls. These walls swing outward to meet the overhanging roof and the newly dropped floor. Align the pre-drilled holes. Secure the walls immediately using the factory-provided structural bolts. Tighten them fully with your impact driver.
Once the exterior shell is fully bolted, step inside. The interior setup process varies depending on your chosen floor plan. For instance, if you purchased a 20FT Expandable Container House with 2 Bedrooms, you will find internal panels folded flat.

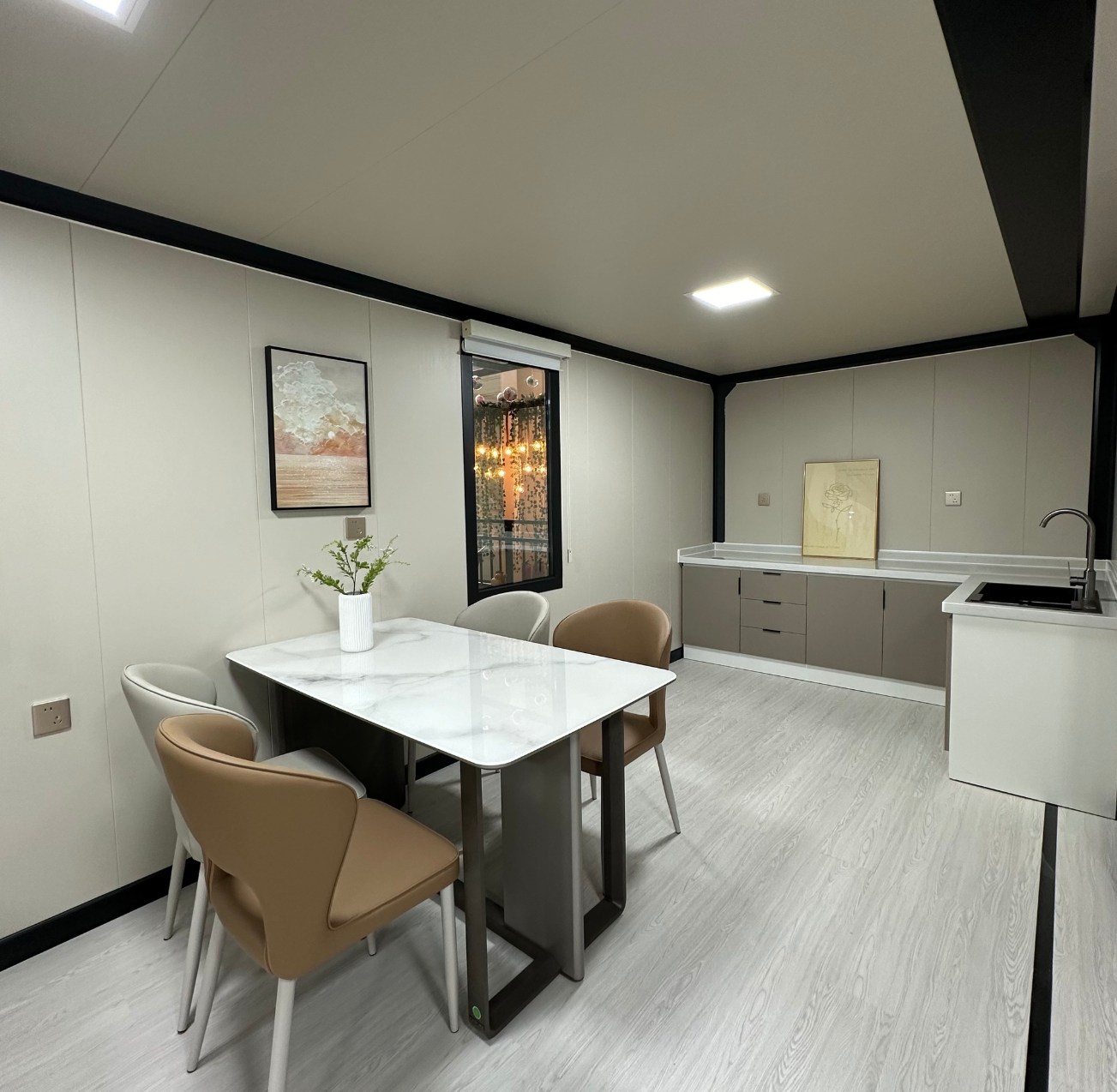

Unfold these pre-installed interior partition walls carefully. Guide the bottom edge of the walls into the pre-cut floor tracks. Lock them into position using the provided hardware. Next, adjust the bedroom doors to ensure the latches align perfectly. A well-leveled main chassis guarantees these interior doors will swing freely without catching.
You currently have a physical shell. You must now bridge the gap to create a compliant, livable structure. Weatherproofing stands as the most critical post-assembly task. Water ingress destroys modular interiors rapidly.
Start applying industrial-grade silicone sealant immediately. Run a thick, continuous bead of silicone along every single exterior folding seam. Seal the primary roof joints where the folding roof meets the central chassis. Seal all external vertical corner trims.
Once the silicone cures slightly, install the external trim pieces. The manufacturer provides these specifically to cover the exposed structural hinges. These trim covers protect the hinges from direct rain and limit rusting. Apply weatherproofing flashing tape along the roof apex if your region experiences heavy snowfall.
Most reputable units feature factory-pre-wired electrical inputs. You will locate a main distribution box and an external industrial plug on the chassis exterior. Hire a licensed local electrician. They will connect your site power to this external plug and provide the necessary regulatory sign-offs.
Next, tackle the plumbing. Connect your pressurized water inlet to the designated exterior valve. Route your grey water and black water outlet connections to your septic system or municipal sewer. Ensure all under-floor pipes maintain a proper downward slope for gravity drainage.
If you are creating an off-grid setup, your utility integration will look slightly different. Many owners utilize these structures as an Expandable Container Cabin for Glamping. In this scenario, you might connect the plumbing to external, above-ground holding tanks. You could also route the main electrical input directly to a heavy-duty solar generator setup.
Experience teaches us what happens when crews ignore the instruction manual. We want to candidly address common pitfalls. Avoid these errors to preserve your investment.
Risk 1: Forceful Unfolding
Never force a stuck panel. If a wall or floor refuses to drop, stop pulling. Forcing a stuck panel inevitably causes permanent hinge damage. Instead, check the ground level again. Often, a stuck panel means the chassis sits unevenly, or you forgot to remove a hidden shipping bolt.
Risk 2: Ignored Roof Pitch
Failing to properly tension the roof supports leads to severe issues. If the roof sags even slightly, rainwater will pool in the center. Over time, this pooling compromises the silicone joints and causes eventual leaking. Always double-check the roof tension and ensure water runs off the edges smoothly.
Risk 3: Inadequate Ground Clearance
Placing the unit directly on bare soil is a catastrophic error. Moisture from the earth will seep directly into the chassis. This causes rapid floor corrosion, encourages mold growth, and immediately voids your manufacturer warranties. Always use raised footings or a properly engineered slab.
A successful deployment relies 80% on rigorous site preparation and only 20% on the physical unfolding process. You must respect the weight and structural dynamics of the unit at all times.
This modular approach drastically reduces standard construction time. However, true success requires professional execution. Leveraging licensed local contractors for your foundation work and utility connections ensures safety. It also guarantees local code compliance and protects your long-term return on investment.
Before delivery day arrives, take action. Download the official technical spec sheet for your specific model. Request a detailed site-assessment checklist. Contact the engineering support team to secure the exact footprint diagrams so your foundation builders can begin their work confidently.
A: Yes, in most jurisdictions. Requirements vary based on local zoning laws. Some counties classify these units as temporary structures, requiring minimal permitting. Others view them as permanent accessory dwelling units (ADUs), requiring full foundation and utility permits. Always consult your local building authority before beginning site prep.
A: The physical unfolding process takes a trained crew roughly 2 hours. However, the complete installation requires 1 to 2 days. This extended timeframe accounts for crane positioning, laser leveling, thorough silicone weatherproofing, and final utility connections.
A: Yes, these structures retain their portability. However, refolding requires significant effort. You must carefully scrape away all exterior silicone sealant. You also need to remove all interior partition walls, disconnect utilities, and reinstall the heavy transport brackets before hoisting.
A: Once fully bolted and sealed, these units exhibit robust structural integrity. They withstand moderate snow loads and high winds. However, in extreme weather zones, you must implement proper ground anchoring systems. Tie the chassis directly to deep concrete footings to ensure maximum stability against hurricanes.
